Description

Base;

1.- The base is made of beams 6 m long, 5 cm wide and 20 cm high.
Vacuum-impregnated wood.
The beams are spaced every 40 cm from the axis,
and in two places they are much denser. The basic structure is solid.
You don’t need to build any foundations.
The sea is located directly on compacted and leveled rock, which helps in water drainage.

Construction;

2.- Then 18 mm thick plywood is screwed to the structure, of course
impregnated from the bottom with a waterproof agent.

3.- The skeleton of the entire structure is cut on a CNC machine from spruce and hardwood plywood.

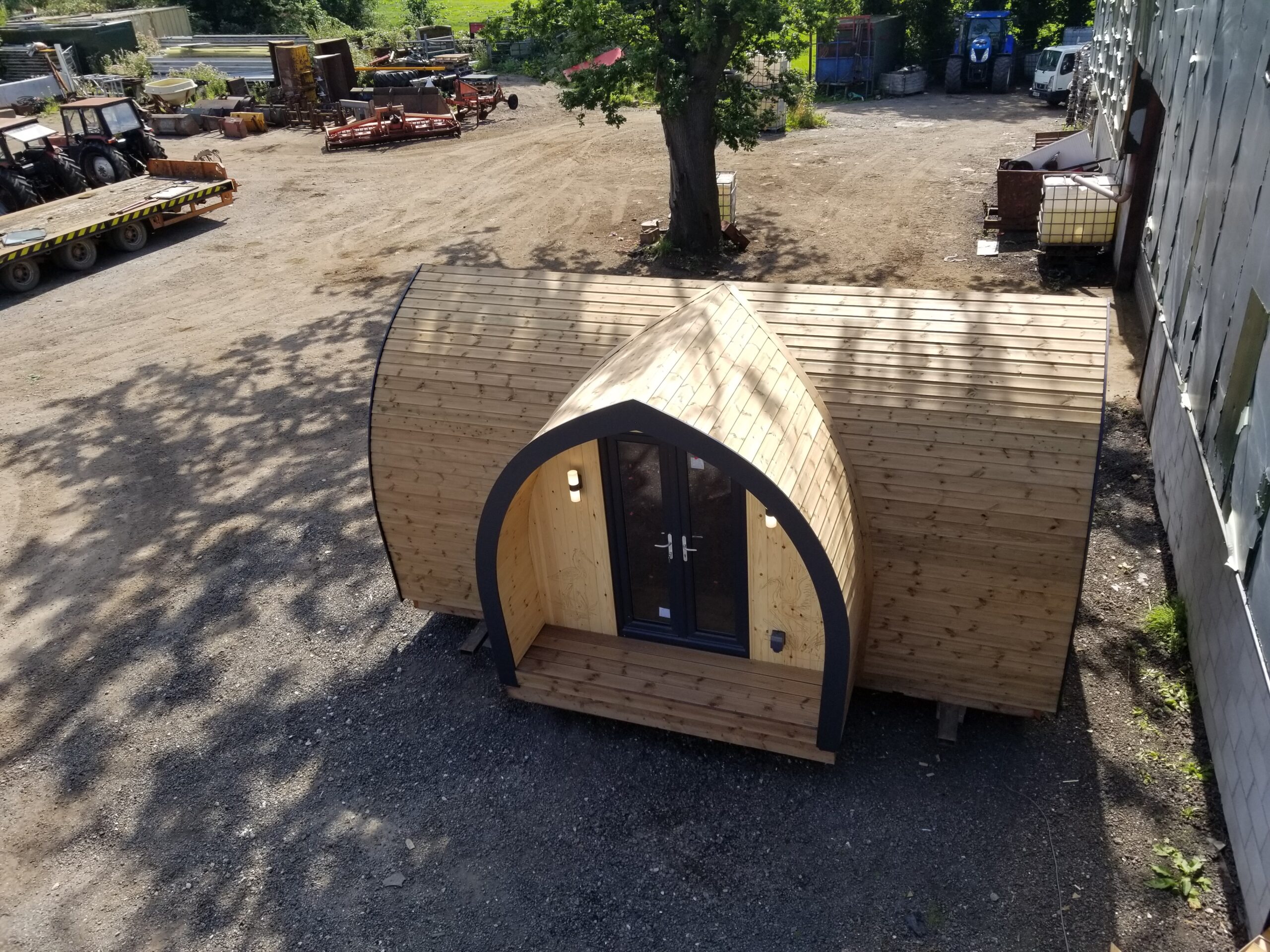

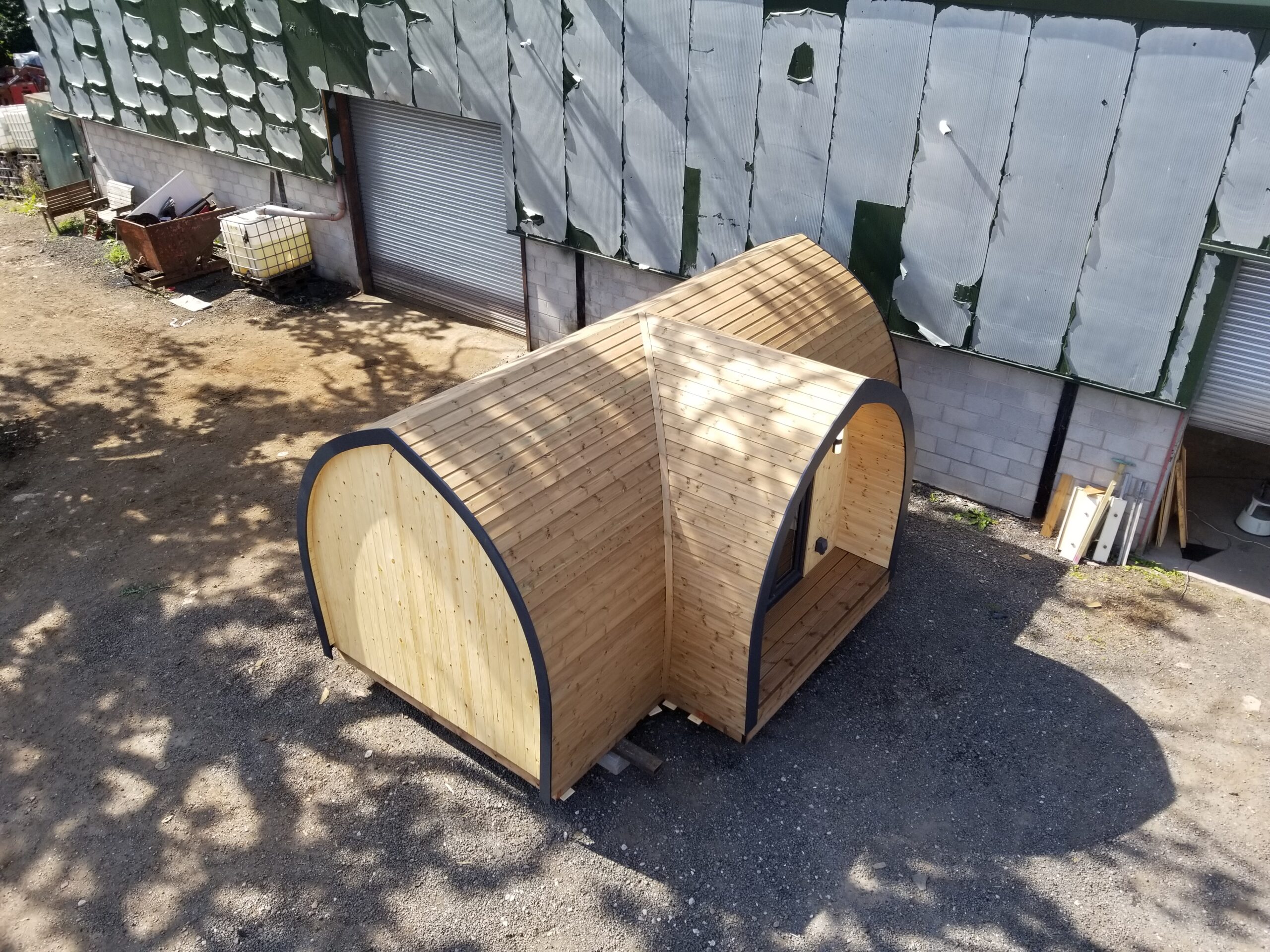

Dimensions: (L) 5.73 m x (W) 3.70 m x (H) 3 m made of double-thickness 18 mm structural plywood,

with a cross-section of 100 mm, which allows the cavity to be filled with mineral wool insulation.
All frames drilled to facilitate electrical wiring, etc.

Waterproofing and thermal insulation layers;

4.- The floor is insulated with 100 mm thick polyurethane foam glued on both sides with temperature-reflecting aluminum foil.

5.- To insulate the floor, 18 mm thick OSB board is screwed, the structure is covered from the outside with 9 mm thick spruce plywood, then impregnated with a bituminous waterproofing agent. Bituminous membrane is glued to the bituminous mass on the edge of the roof facing upwards, the gutters are created so that water does not get inside.

In the case of hot-glued roofing felt, battens 5 cm long and 40 cm wide are cut from axis to axis to create a gap between the paneling and the roofing felt.

Which will cause deregulation and at the same time extend the life of materials through natural water drainage and convection. The studded slats are impregnated with a bituminous agent to maximize service life, then the panels are placed on impregnated battens with a thickness of 16 mm with a tongue, the panels are vacuum impregnated. In addition, it is coated with 1 layer of OSMO primer oil and 1 layer of high-grade OSMO UV oil to maintain the quality for many years.

6.- the walls are installed with mineral wool on the sides of 100 mm and widened to 170 mm, then
the electrical installation of CCTV and RTV and the Internet, double electrical sockets with USB and the usual two entrances for radiators are installed,
then additional insulation made of silver bubble foil, reflecting heat, it is cold when nailing the insulation,
partition walls are made of 19mm thick external panels, then 2.5cm thick battens to maintain convection
under the battens is the highest quality waterproof membrane, then OSB 10cm construction
between the structure 100mm insulation, then bubble wrap Silver insulation on foil OSB board is screwed to

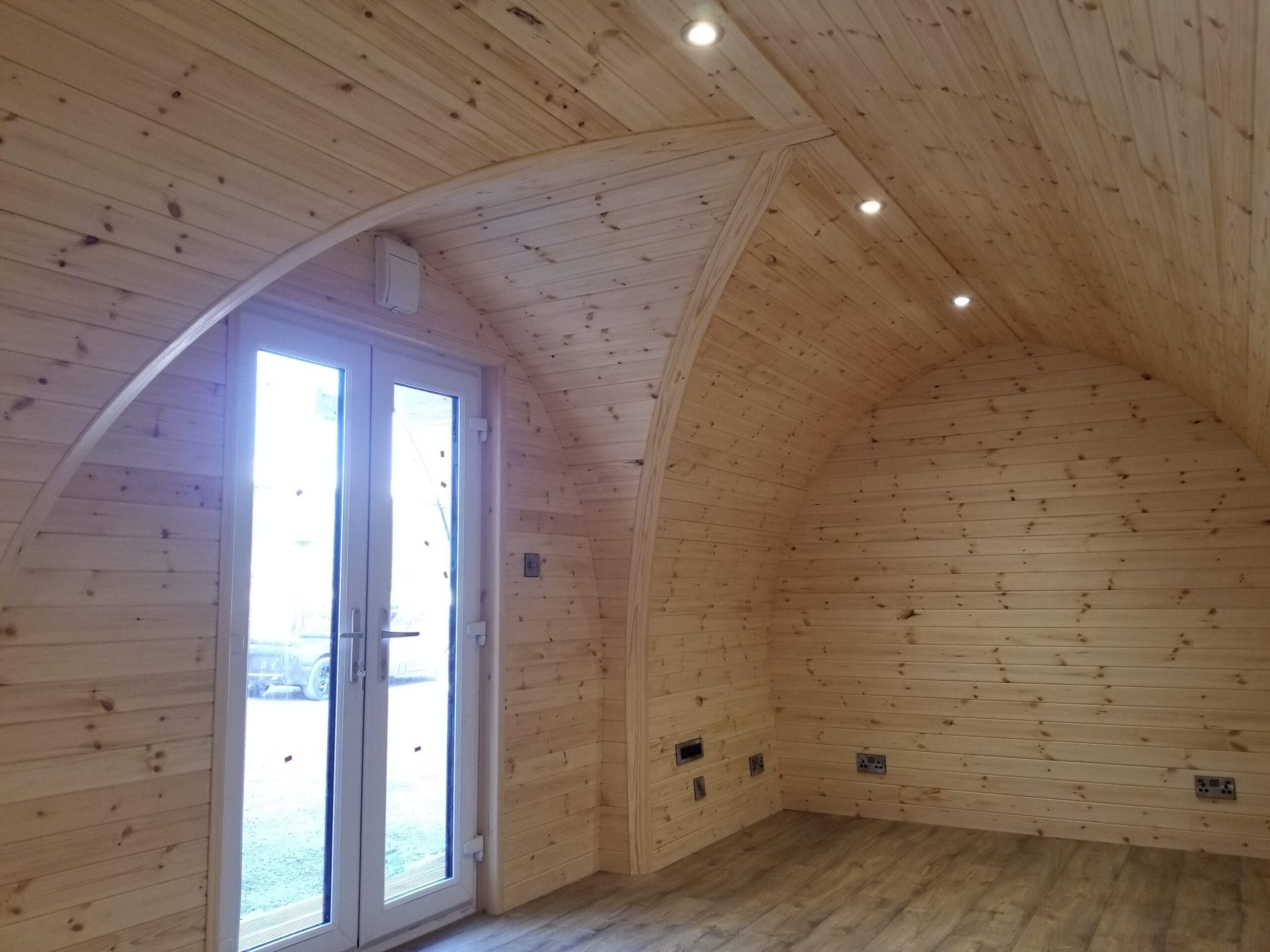

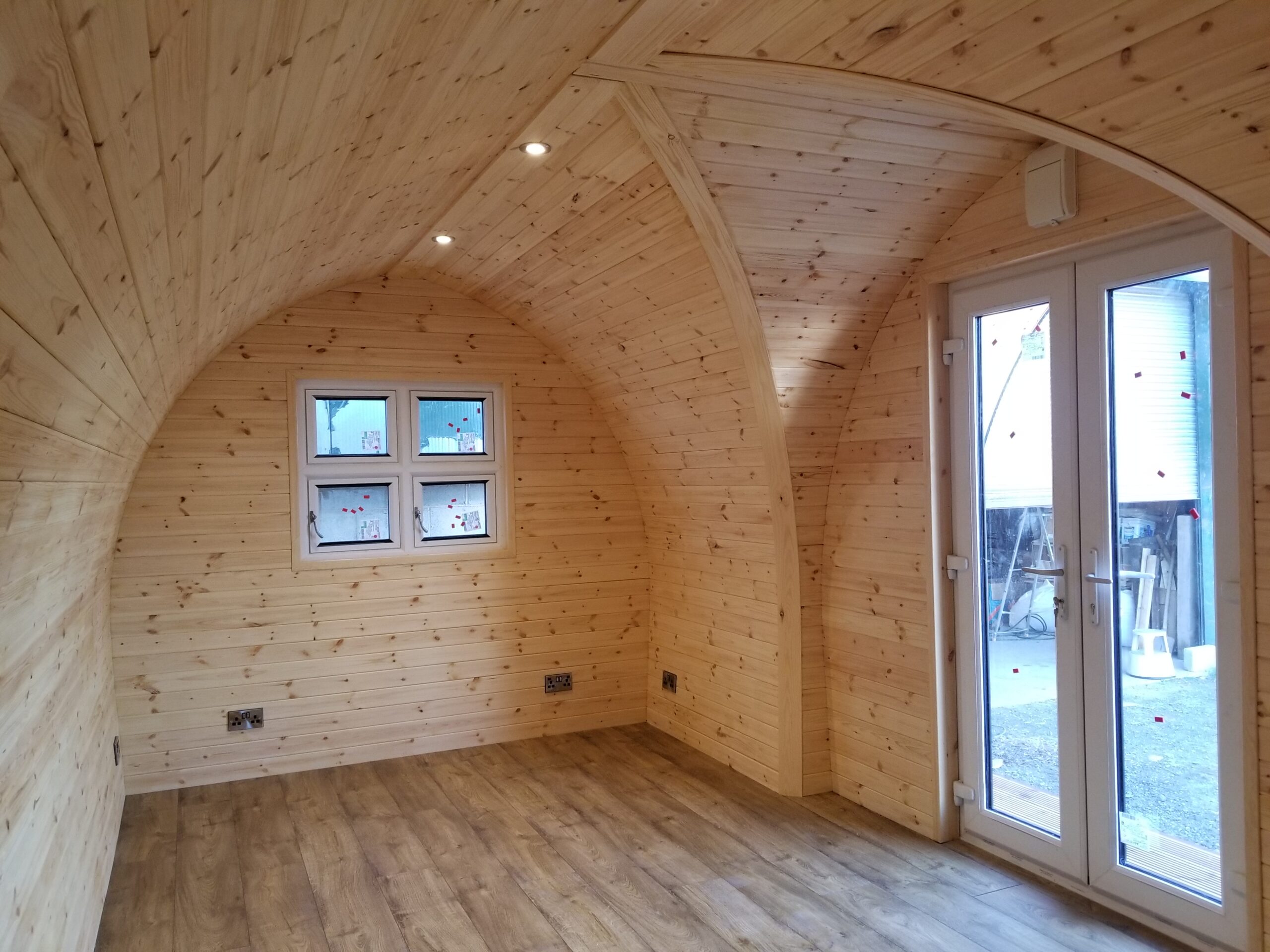

the OSB board and the interior cladding is laid.

7.- The panels are impregnated with good quality Osmo oil resistant to UV radiation, of course Osmo primer.

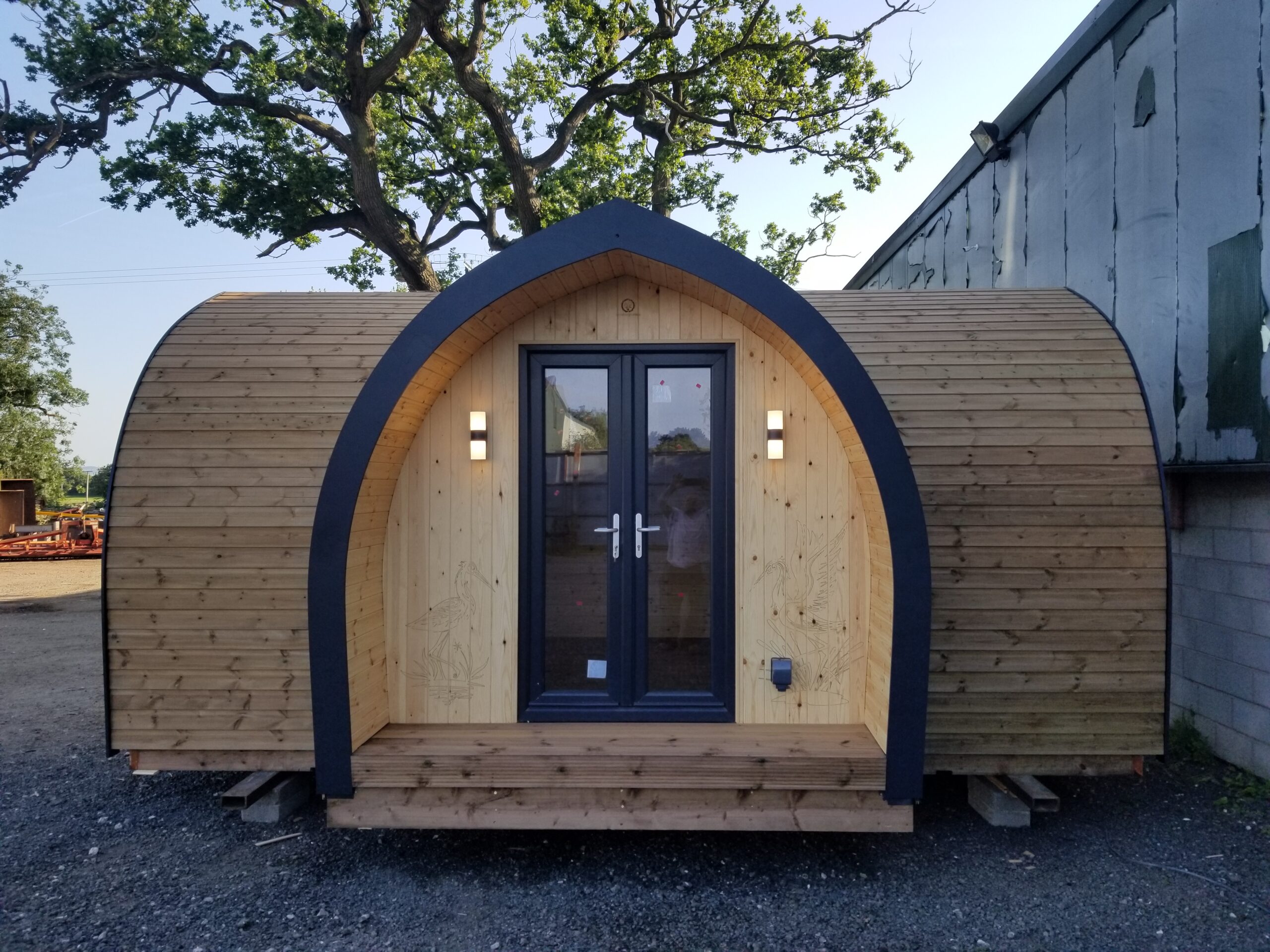

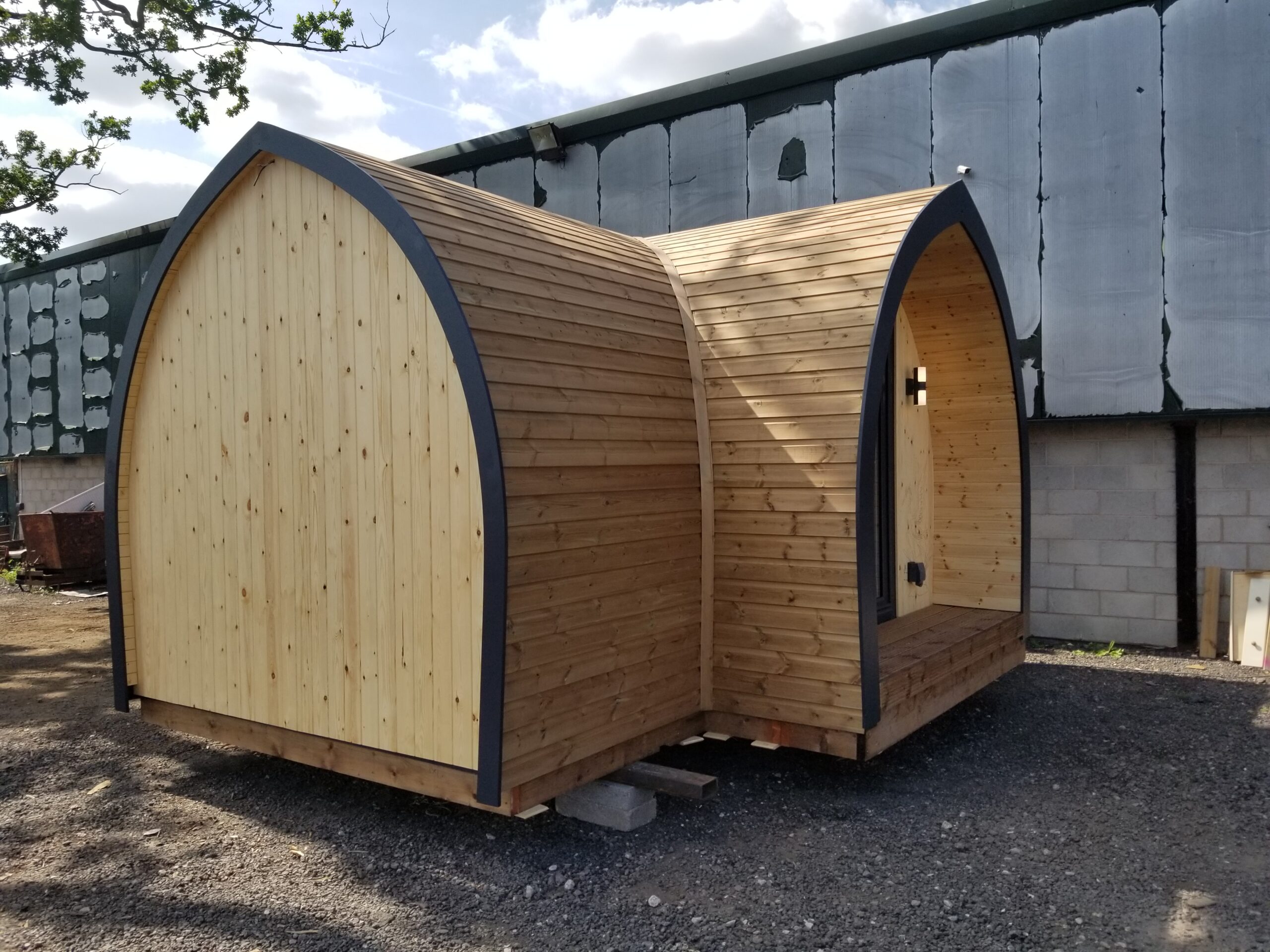

8.- decorative strips on the front and sides are made of high-quality Marine plywood, additionally painted with waterproof paint in dark gray.

The entire stage of individual activities can be viewed on Facebook
