When it comes to putting a box or carcass together, this is a truly useful accessory. Used in conjunction with a multifunction table, the Alternative Assembly Square is a very effective third or even fourth hand when trying to join the corners of a cabinet carcass or frame.

It is an L-shaped section of CNC machined, MDF with 360mm long legs. The legs are exactly at 90° and feature a group of 3 x 20mm dog holes. These holes align diagonally with the multifunction table dog holes. . Once in place the Assembly Square forms a reference for a fast, spot-on and accurate way to set up a guide rail for 45° mitre cuts.

The square really comes into its own as an assembly aid for box, frame or carcass construction.

Milled holes of 20 mm are dedicated to BD and UJK dogs, center to center distance 96 mm.

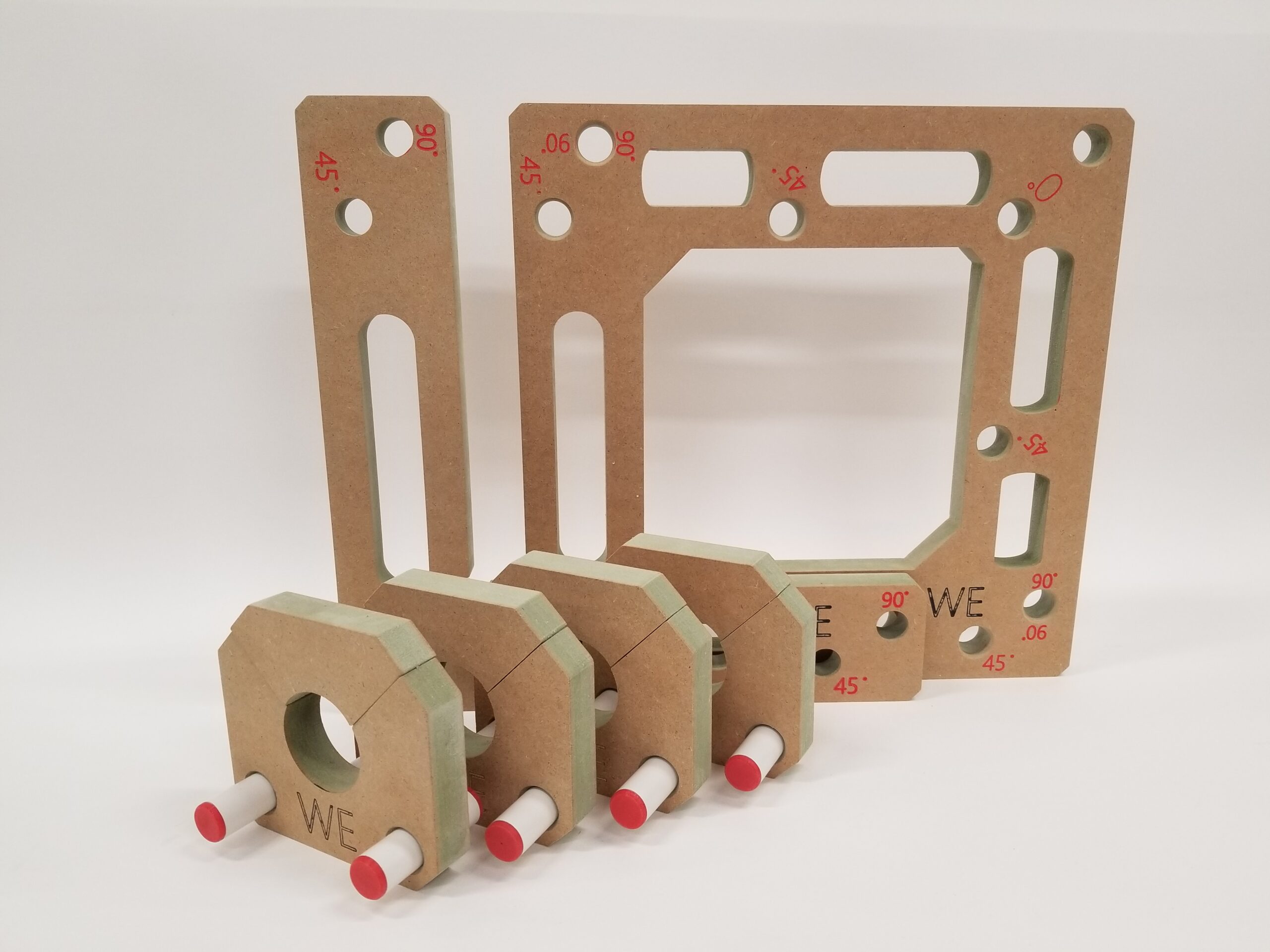

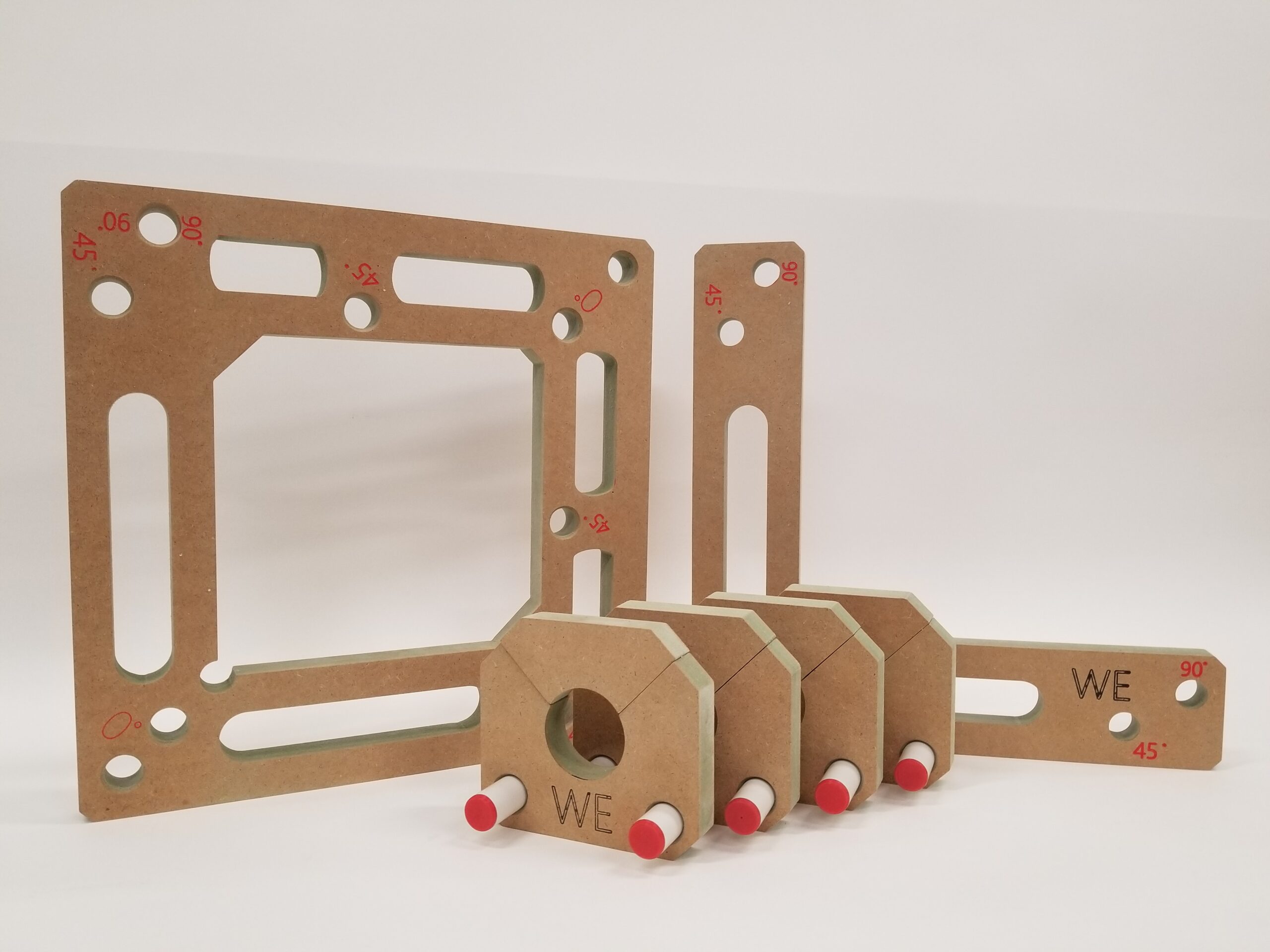

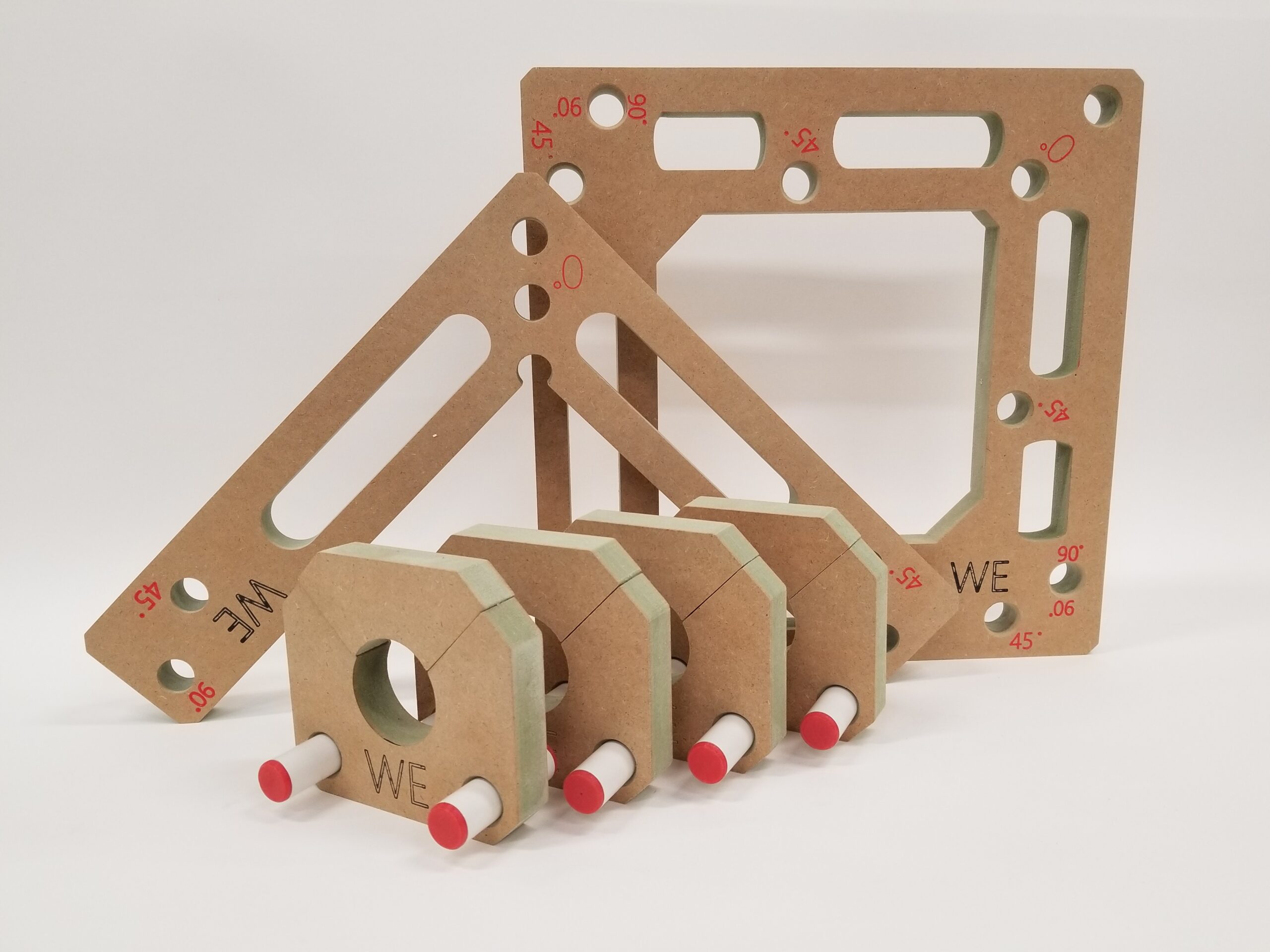

Dimensions of individual tools ;

One piece – ASSEMBLY SQUARE MFT/3 TABLE        :    (L) 360mm x (W) 360 mm x 18mm /24mm Thick

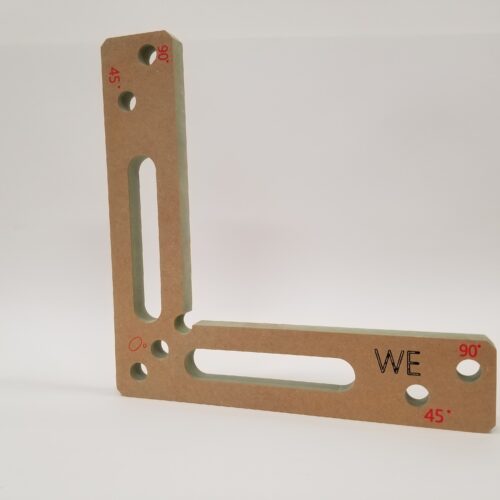

One piece – ALTERNATIVE ASSEMBLY SQUARE       :    (L) 360mm x (W) 360 mm x 18mm /24mm Thick

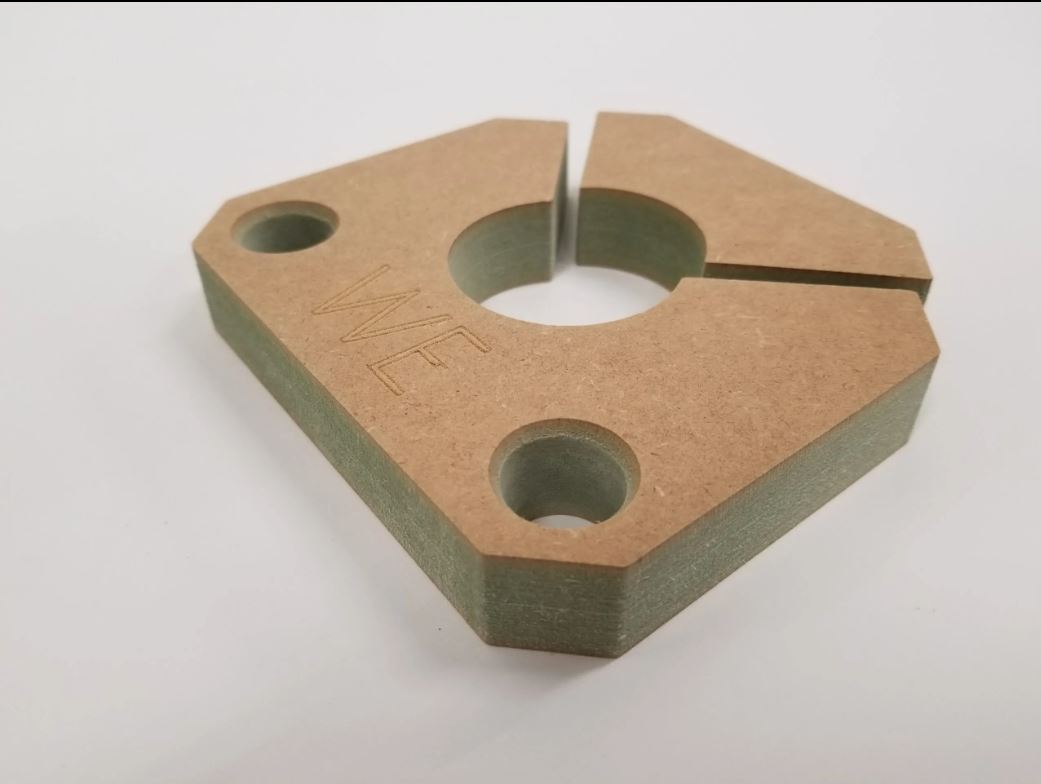

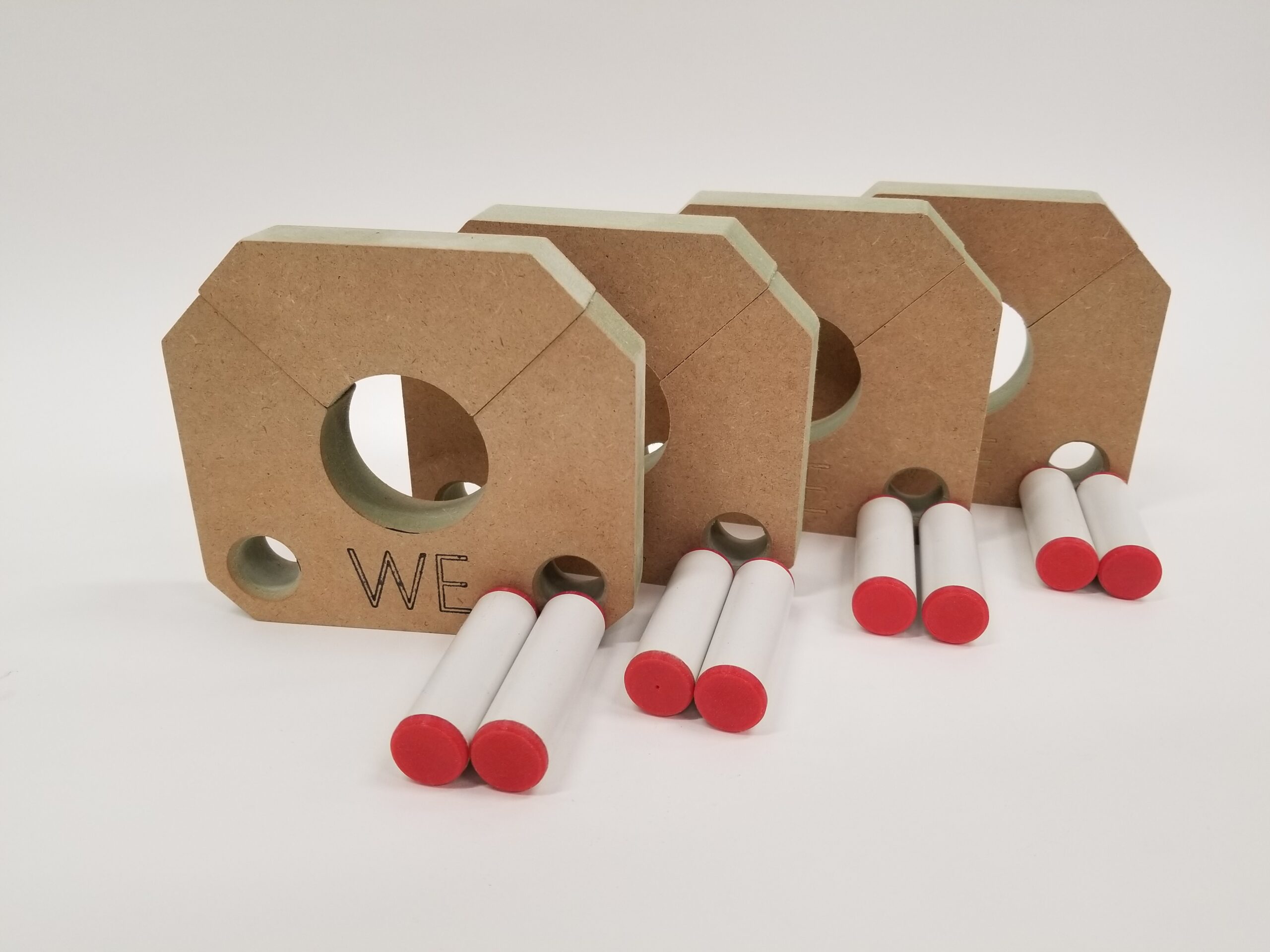

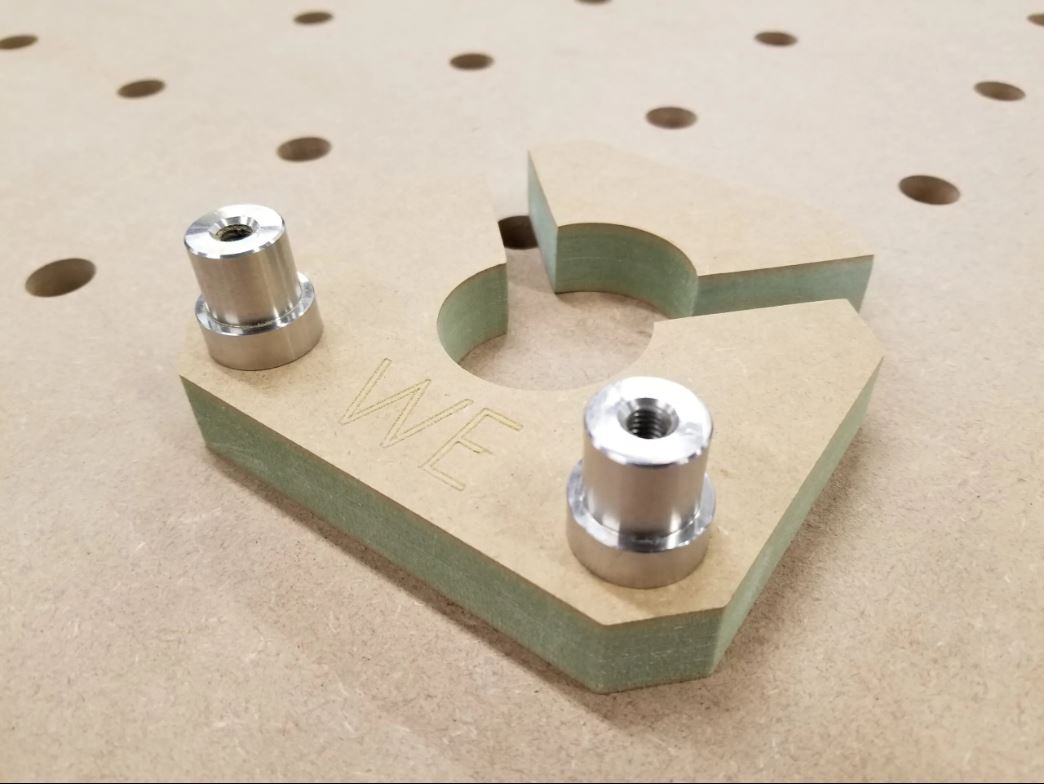

One piece – CORNER CLAMP MFT/3 TABLE                :    (L) 135mm x (W) 120 mm x 18mm /24mm Thick

This is NOT a Festool product
